Multi Lanes Shampoo Sachet Packing Machine Automatic Liquid Sachet Filling Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
Liquid multi lane sachet packing machine | Shampoo sachet filling packing machine : suitable for shampoo, paste, ketchep, sauce, jelly, chocolate sauce, cream, etc.
Basic Info.
|
Model |
LD-480Y | LD-720Y | LD-1200L |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |

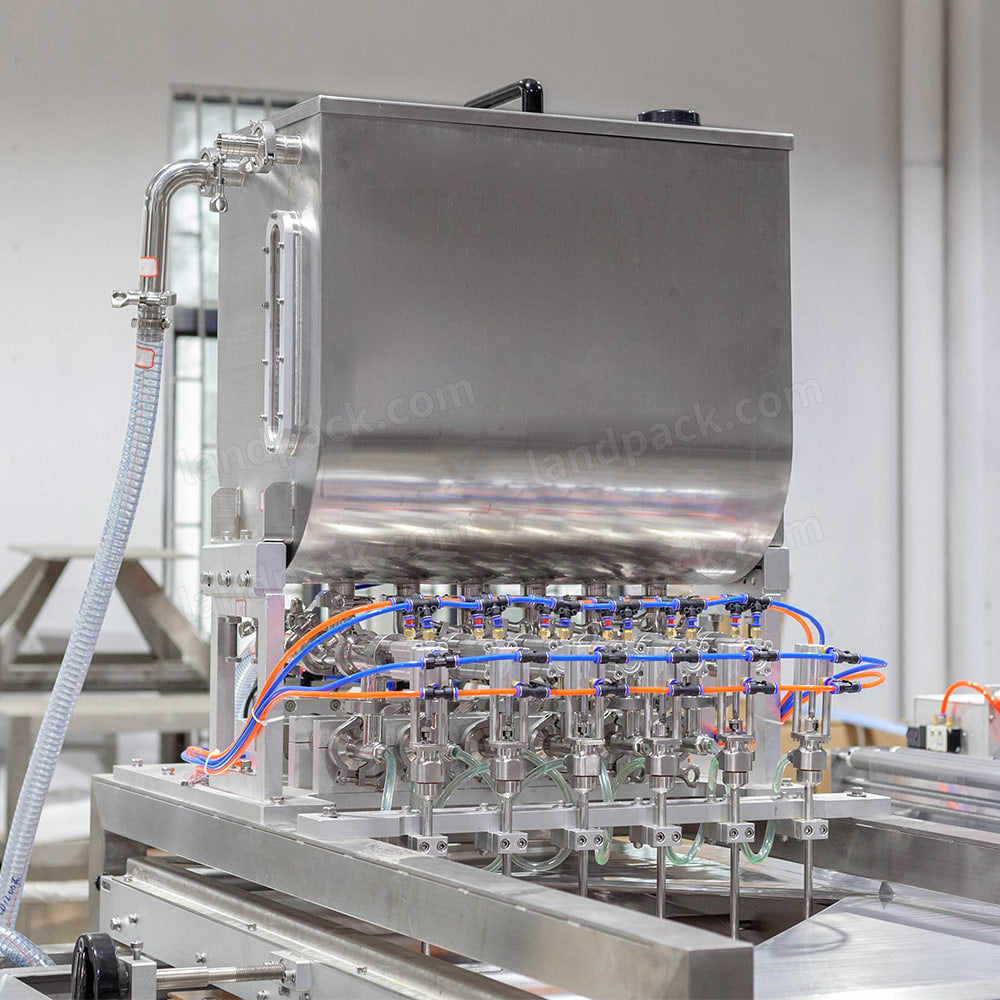

| Filling Method | 1. Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycles/min | ||
| Sachet Size | L:45--120mm; W:35-60mm | L:45--120mm; W:35-90mm | L:45--120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 4 sides sealing | 4 sides sealing | 4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
Product Description:
Multi Lanes Shampoo Sachet Packing Machine Automatic Multi Lane Liquid Sachet Pack Filling Machine
Application Of Multi Lanes Shampoo Sachet Packing Machine Automatic Multi Lane Liquid Sachet Pack Filling Machine
Liquid multi lane sachet packing machine | Shampoo sachet filling packing machine : suitable for shampoo, paste, ketchep, sauce, jelly, chocolate sauce, cream, etc.
(We have several models. We can customize the suitable one for you according to your requirements. Just Tell us: Weight or Bag.)

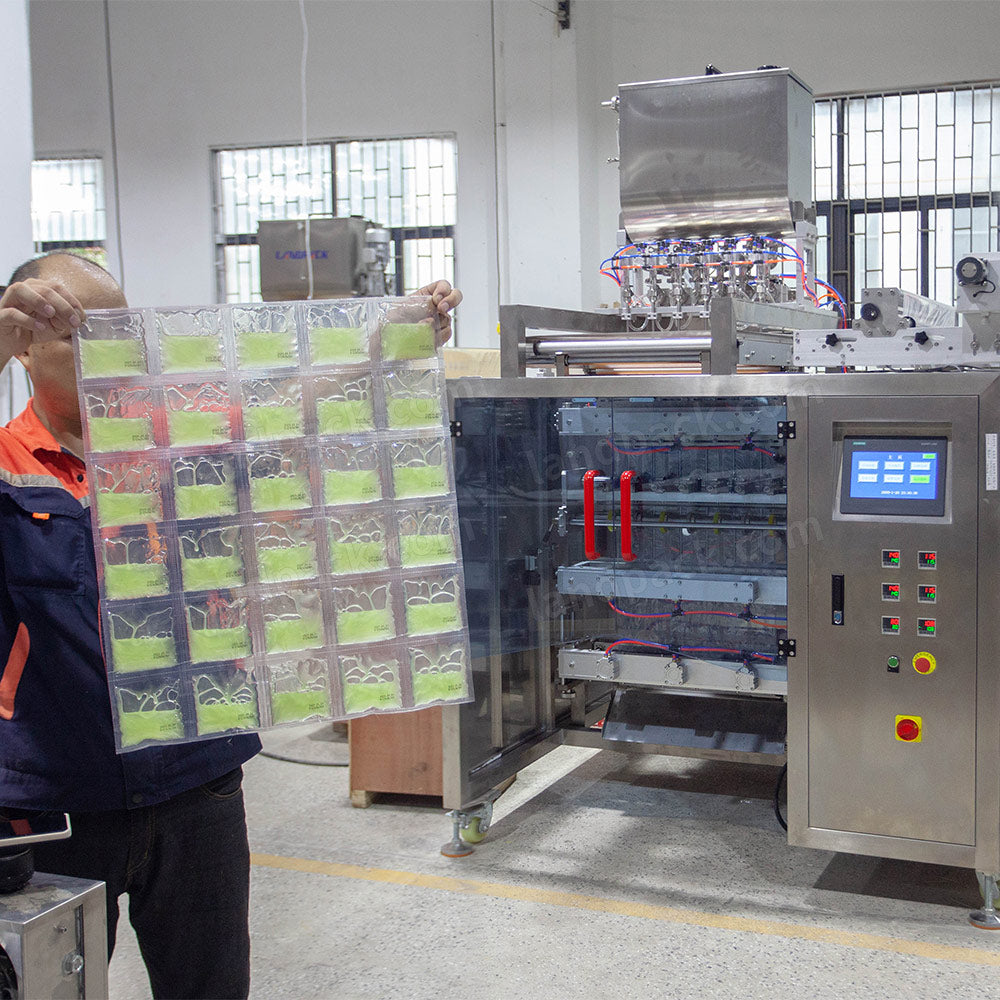

The Sample Of Multi Lanes Shampoo Sachet Packing Machine Automatic Multi Lane Liquid Sachet Pack Filling Machine
The Feature Of Multi Lanes Shampoo Sachet Packing Machine Automatic Multi Lane Liquid Sachet Pack Filling Machine
1. Automatically complete all tasks such as measurement, bag making, filling, sealing, batch number printing, cutting and counting.
2. Automatic slitting film system, multi-line row and bag sealing at the same time.
3. Servo film running system, pneumatic control for horizontal sealing, accurate positioning, remarkable performance and beautiful packaging.
4. The dual light source photoelectric detection system is stable and reliable to ensure the integrity of the packaging bag.
5. Intelligent PLC control system, stable operation of the machine, convenient and fast operation.
6. A variety of automatic alarm protection functions can effectively reduce the loss of materials and ensure work safety.
7. Use touch screen to set parameters and support multiple languages.
