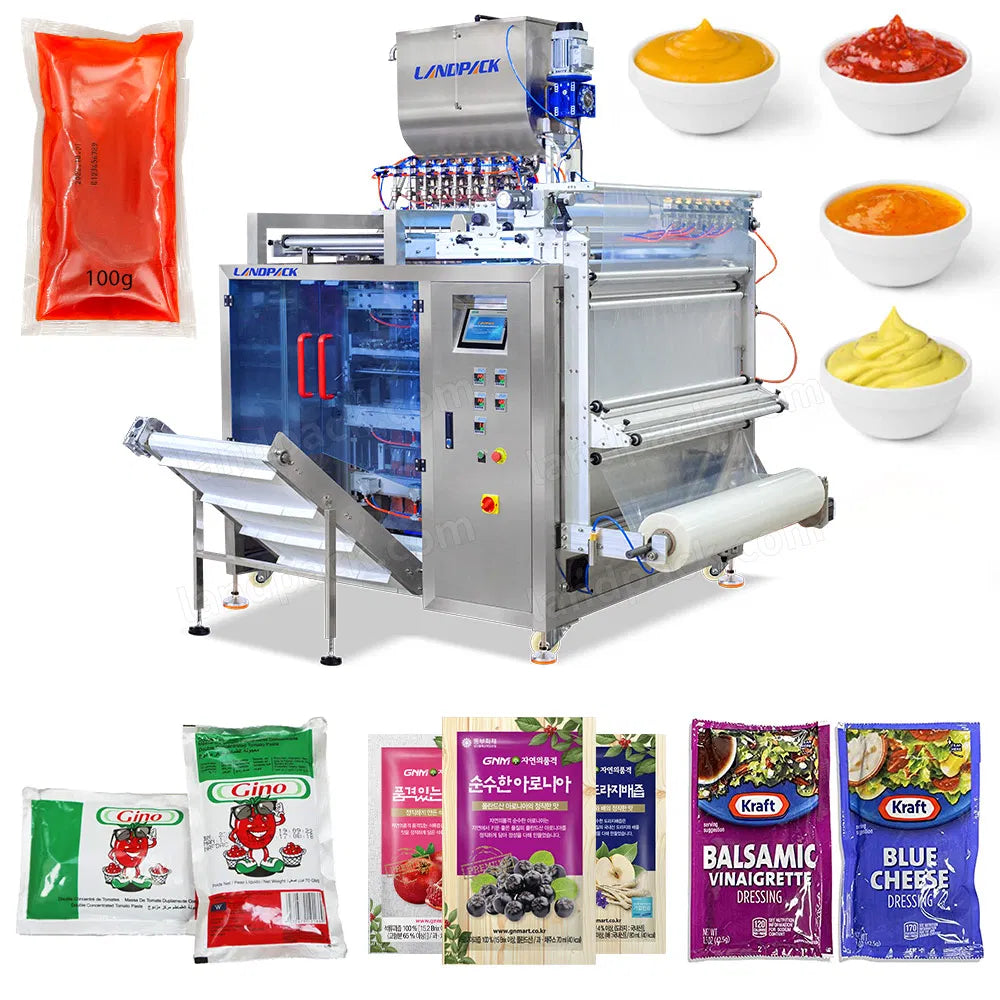

Automatic Multi Lane Hot Sauce Tomato Paste Liquid Sachet Bag Packaging Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
Automatic Multi Lane Hot Sauce Tomato Paste Liquid Sachet Bag Packaging Machine
Model: LD-960Y
Application:
1. Ideal for dosing and packaging liquids or semi-liquids, this machine handles the complete process—including sachet forming, precise product dosing, filling, and sealing—into 3-side or 4-side sealed sachets. Offers flexible cutting options such as single sachet or string sachet cutting to suit various packaging needs.
2. Applicable industry: Suitable for liquid products containing fine particles such as chili sauce, bean paste, instant noodle sauce, ketchup, paste, honey, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, jelly, etc.
Automatic Multi Lane Hot Sauce Tomato Paste Liquid Sachet Bag Packaging Machine
Application:
Ideal for dosing and packaging liquids or semi-liquids, this machine handles the complete process—including sachet forming, precise product dosing, filling, and sealing—into 3-side or 4-side sealed sachets. Offers flexible cutting options such as single sachet or string sachet cutting to suit various packaging needs.
(We have several models. We can customize the suitable one for you according to your requiredment. Just Tell us : Weight or Bag.)
The Sample Of Automatic Multi Lane Hot Sauce Tomato Paste Liquid Sachet Bag Packaging Machine
1. Automatically complete all tasks such as measurement, bag making, filling, sealing, batch number printing, cutting and counting.
2. Automatic slitting film system, multi-line row and bag sealing at the same time.
3. Servo film running system, pneumatic control for horizontal sealing, accurate positioning, remarkable performance and beautiful packaging.
4. The dual light source photoelectric detection system is stable and reliable to ensure the integrity of the packaging bag.
5. Intelligent PLC control system, stable operation of the machine, convenient and fast operation,
6. A variety of automatic alarm protection functions can effectively reduce the loss of materials and ensure work safety.
7. Use touch screen to set parameters and support multiple languages.
The Description Of Automatic Multi Lane Hot Sauce Tomato Paste Liquid Sachet Bag Packaging Machine
|
Model |
LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
| Filling Method | 1.Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L:45--120mm; W:35-60mm | L:45--120mm; W:35-90mm | L:45--120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
