Automatic 12 Lanes Silica Gel Stick Bag Pouch Packing Packaging Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
This multi lanes machine can make bags, measure, fill, seal, and make the easy tearing notches. Suitable for food, cosmetic, medicine packing such as silica desiccant, sugar, salt, pepper, washing powder and all kinds of granule etc.
Basic Info.
| Model | LD-280BF | LD-560BF |
| Lane number | 4-6 Lines | 8-12 Lines |
| Filling Method | Auger filling by servo motor | |
| Capacity | Max.35 cycles/min | Max.35 cycles/min |
| Stick Size | L:50-180mm; W:17-30mm | L:50-180mm; W:17-30mm |
| Film width & Thickness | Max.280mm, 0.07-0.10mm | Max.560mm, 0.07-0.10mm |
| Sealing type | Back sealing/Stick bag | Back sealing/Stick bag |
| Cutting type | 1. Straight cutting 2. Zig zag cutting 3. Round cutting 4. Irregular |
|
| Air & Power | 0.8Mpa, 0.8m³/min, 3.5kw | 0.8Mpa, 0.8m³/min, 5.5kw |
| Dimension & weight | 1385 × 918 × 2005mm; 350kg | 1685 × 1300 × 2005mm; 550kg |
Product Description

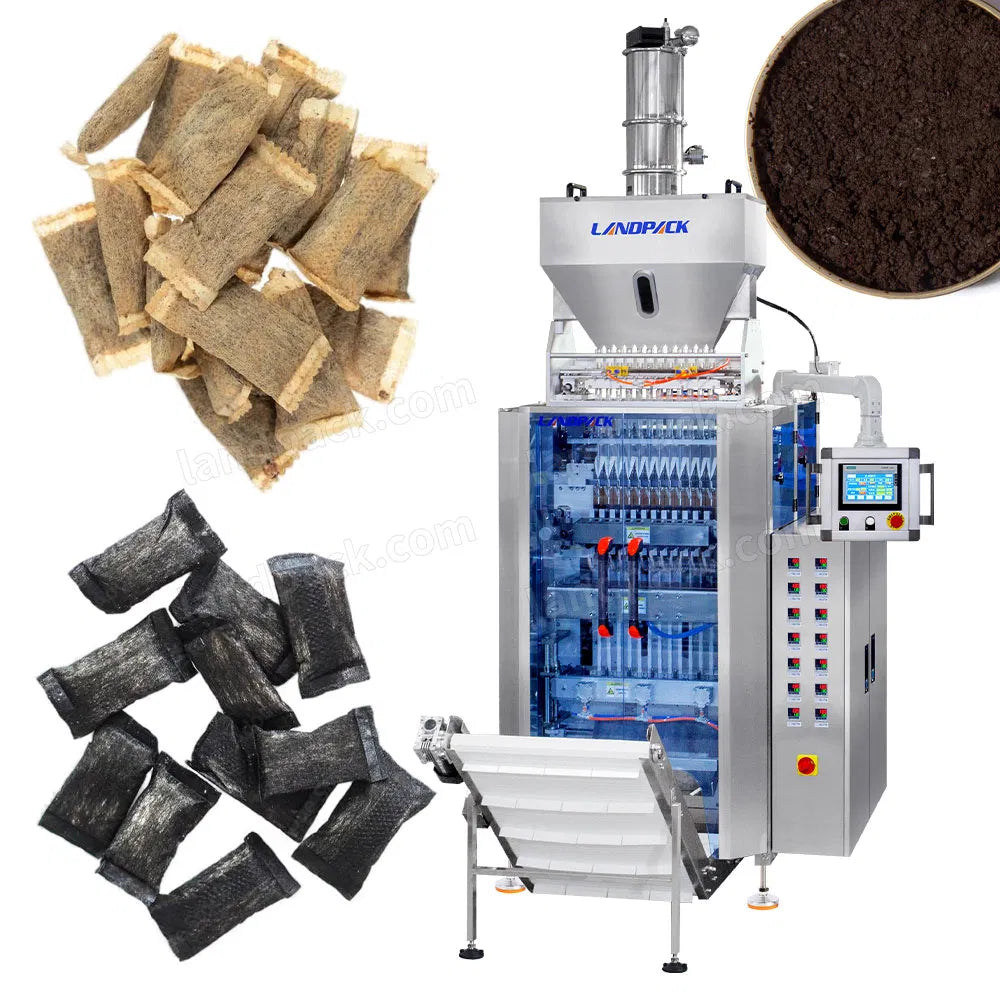

Automatic 12 Lanes Silica Gel Stick Bag Pouch Packing Packaging Machine
This multi lanes machine can make bags, measure, fill, seal, and make the easy tearing notches. Suitable for food, cosmetic, medicine packing such as silica desiccant, sugar, salt, pepper, washing powder and all kinds of granule etc.
The sample of Automatic 12 Lanes Silica Gel Stick Bag Pouch Packing Packaging Machine
Features
The Features of Automatic 12 Lanes Silica Gel Stick Bag Pouch Packing Packaging Machine
1. High production efficiency, 12 lanes speed can reach 100-150 packets per minute, improve production capacity and save manpower.
2. High degree of automation: filling, feeding, printing batch number, cutting easy to tear, finished bag output is completed in one time, quick and convenient adjustment.
3. Servo motor system control, accurate measurement, accurate film drawing, and film feeding.
4. Vacuum pump feeding is more sanitary.
5. Easy to use, do not need to switch different modes and frequent debugging, all parameters set before the factory, only need to set simple parameters on the screen can be used.
