Automatic 12 Lanes Snus Tobacco Snuff Powder Stick Packing Machine
This machine is suitable for the packaging of various granular materials in the food, chemical, daily chemical and other industries, such as sugar, salt, pepper, sesame, seeds, edible granules, coffee powder, oatmeal, desiccant, washing powder, etc.

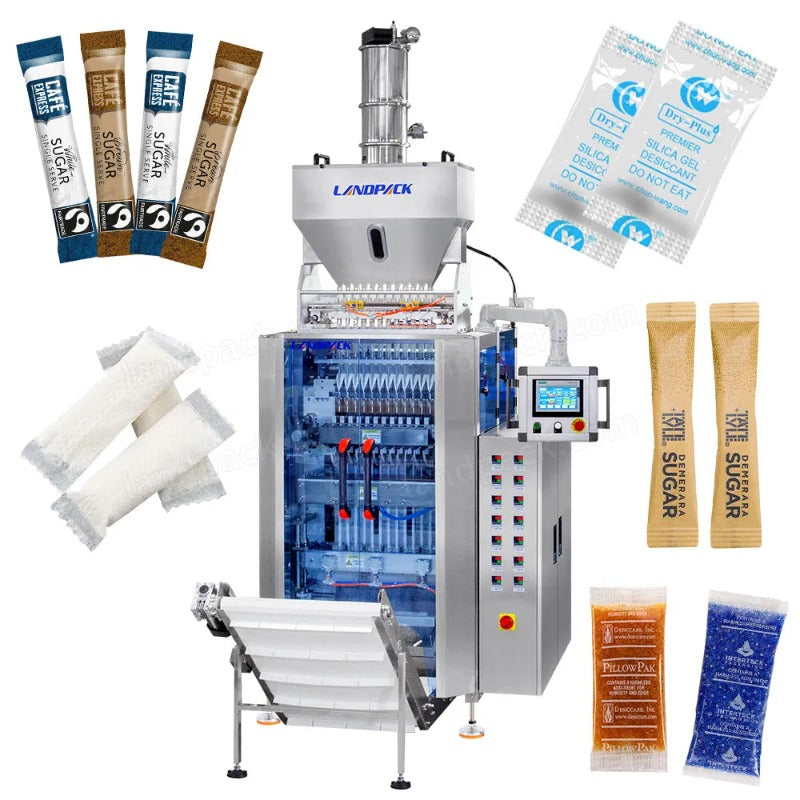

The sample of Automatic 12 Lanes Snus Tobacco Snuff Powder Stick Packing Machine
The Features of Automatic 12 Lanes Snus Tobacco Snuff Powder Stick Packing Machine
1. It can automatically complete all tasks such as measuring, cutting, bag making, sealing, slitting, counting, and hot pressing batch numbers in the packaging process.
2. Intelligent PLC control system, touch screen operation, only needs to set parameters to accurately control the operation of the system.
3. The silent stepper motor is used to make the production environment quieter and meet the requirements of environmental protection.
4. The number of lane lines is customized according to customer needs to meet different production requirements.
5. Automatic slitting film system, the incision is smooth and flat, and the multi-channel bag filling and sealing.
Specification of Automatic 12 Lanes Snus Tobacco Snuff Powder Stick Packing Machine
| Specification | LD-280BF | LD-560BF |
|---|---|---|
| Lane number | 4-6 Lines | 8-12 Lines |
| Filling Method | Auger filling by servo motor | |
| Capacity | Max.35 cycles/min | - |
| Stick Size | L:50-180mm W:17-30mm |
L:50-180mm W:17-30mm |
| Film width & Thickness | Max.280mm 0.07-0.10mm |
Max.560mm 0.07-0.10mm |
| Sealing type | Back sealing/Stick bag | Back sealing/Stick bag |
| Cutting type | 1. Straight cutting 2. Zig-zag cutting 3. Round cutting 4. Irregular |
|
| Air & Power | 0.8Mpa 0.8m³/min 3.5kw |
0.8Mpa 0.8m³/min 5.5kw |
| Dimension & weight | 1385×918×2005mm 350kg |
1685×1300×2005mm 550kg |
We take great pride in our work and in the wide variety of products that we offer. For offer the right model machine, please provide the following product information. Thank you in advance.
