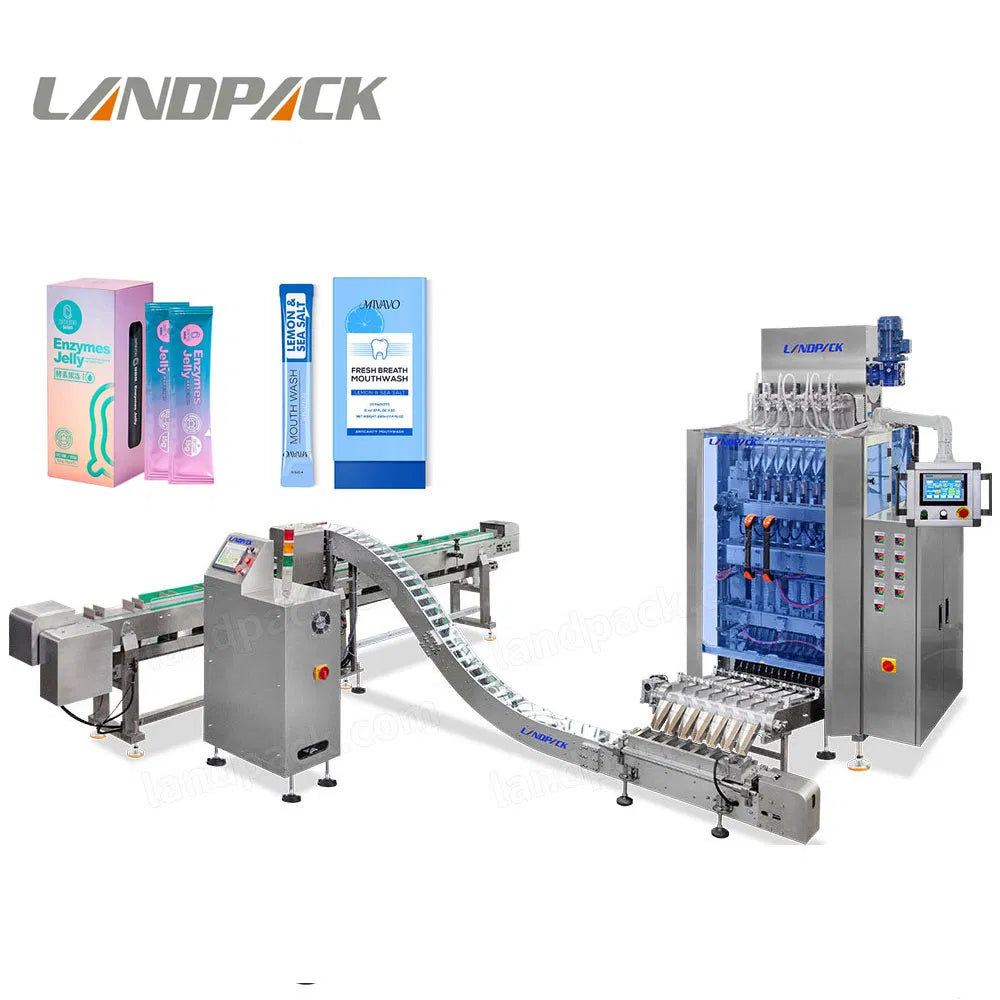

Multi Track Liquid Stick Sachet Packing Counting Cartoning Machine Line
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
Landpack has a line of stick pack machines for single-serve packaging. Package up to 12 lanes of stick packs in multiple sizes quickly and reliably. Supporting counting cartoning machine, more intelligent. Suitable For Many Kinds Of Liquid Products, Such As Sauce, Honey, Oil, Jelly, Shampoo, Facial Cream, Etc.
Basic Info.
| Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
| Filling Method | 1. Piston pump; 2. Peristaltic Pump | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L:45-120mm; W:35-60mm | L:45-120mm; W:35-90mm | L:45-120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
| DIM & WT | 950×1470×1750mm; 300kg | 1153×1654×1750mm; 400kg | 1415×1686×2130mm; 500kg |
Product Description
Multi Track Liquid Stick Sachet Packing Counting Cartoning Machine Line
Application Of Multi Track Liquid Stick Sachet Packing Counting Cartoning Machine Line
Multi track liquid stick packing machine with counting cartoning machine, such as health drink, sauce, honey, ketchup, jam, chili sauce, oil, shampoo, pizza sauce, peanut butter, tartar sauce, chocolate sauce, facial cream, cream, liquid butter, juice, shower gel, shampoo, etc.
(We have several models. We can customize the suitable one for you according to your requirements. Just Tell us: Weight or Bag.)
The Sample Of Multi Track Liquid Stick Sachet Packing Counting Cartoning Machine Line
The Feature Of Multi Track Liquid Stick Sachet Packing Counting Cartoning Machine Line
1. Automatically complete all tasks such as measurement, bag making, filling, sealing, batch number printing, cutting, counting and cartoning.
2. Automatic slitting film system, multi-line row and bag sealing at the same time.
3. Servo film running system, pneumatic control for horizontal sealing, accurate positioning, remarkable performance and beautiful packaging.
4. The dual light source photoelectric detection system is stable and reliable to ensure the integrity of the packaging bag.
5. Intelligent PLC control system, stable operation of the machine, convenient and fast operation,
6. A variety of automatic alarm protection functions can effectively reduce the loss of materials and ensure work safety.
7. Use touch screen to set parameters and support multiple languages.
