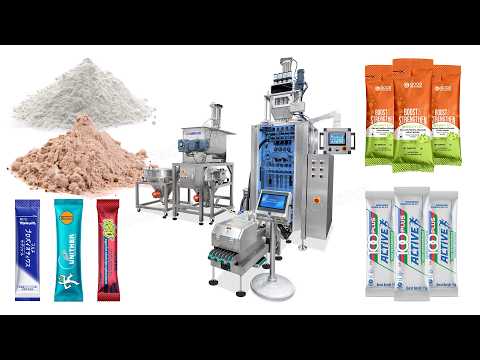

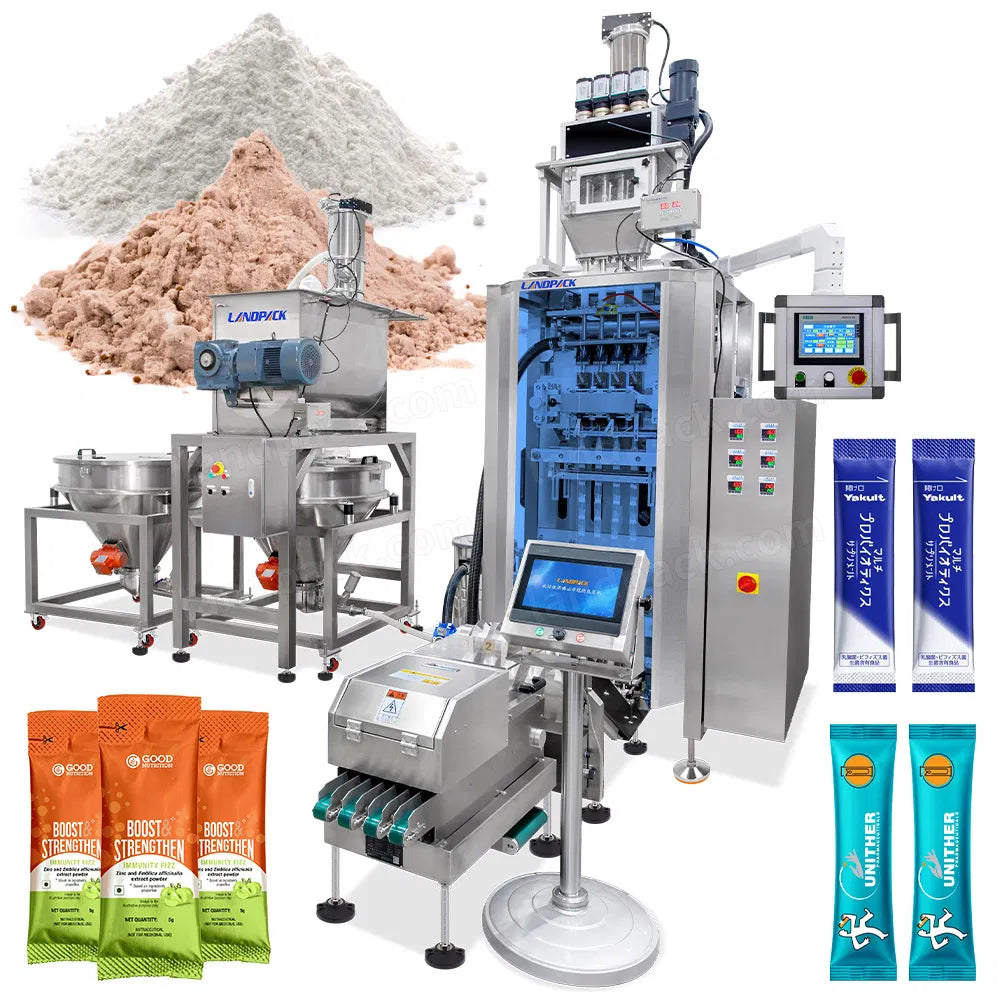

Automatic 4 Lanes Pharma Medical Powder Stick Pack Packing Machine Line
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution

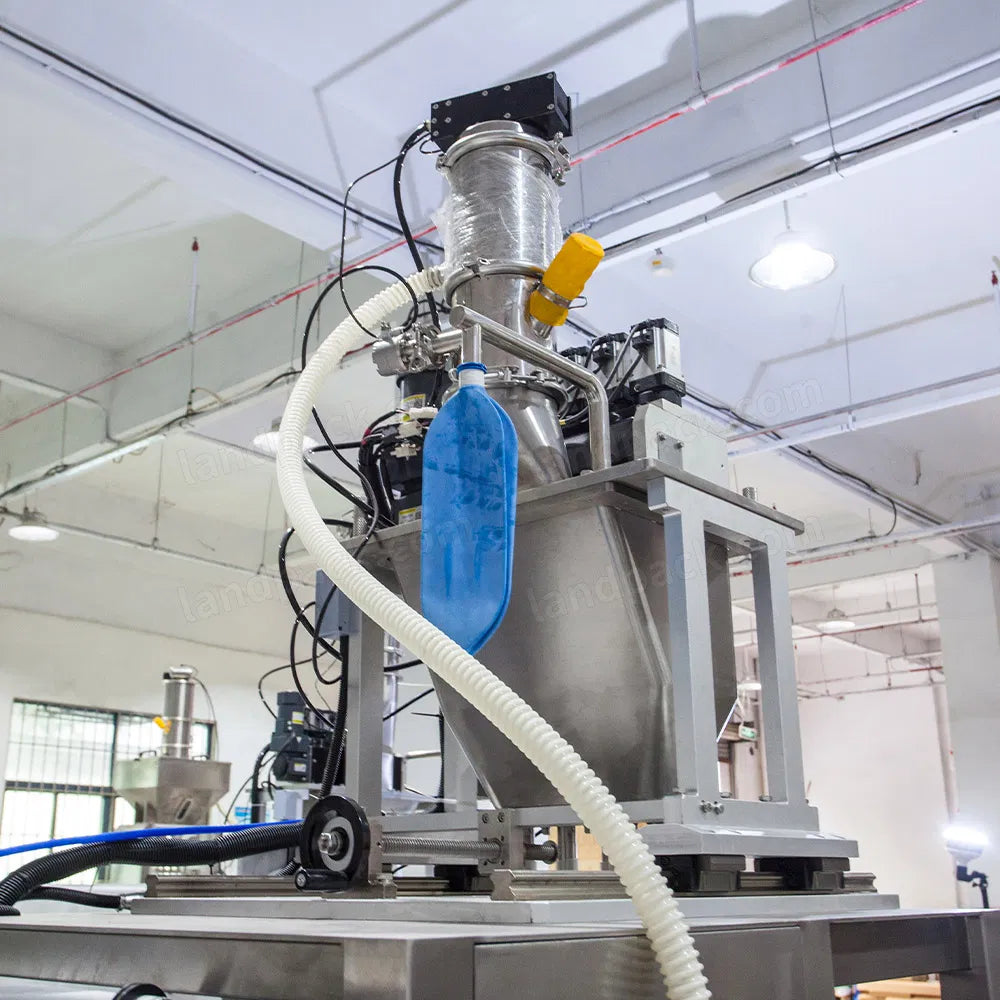

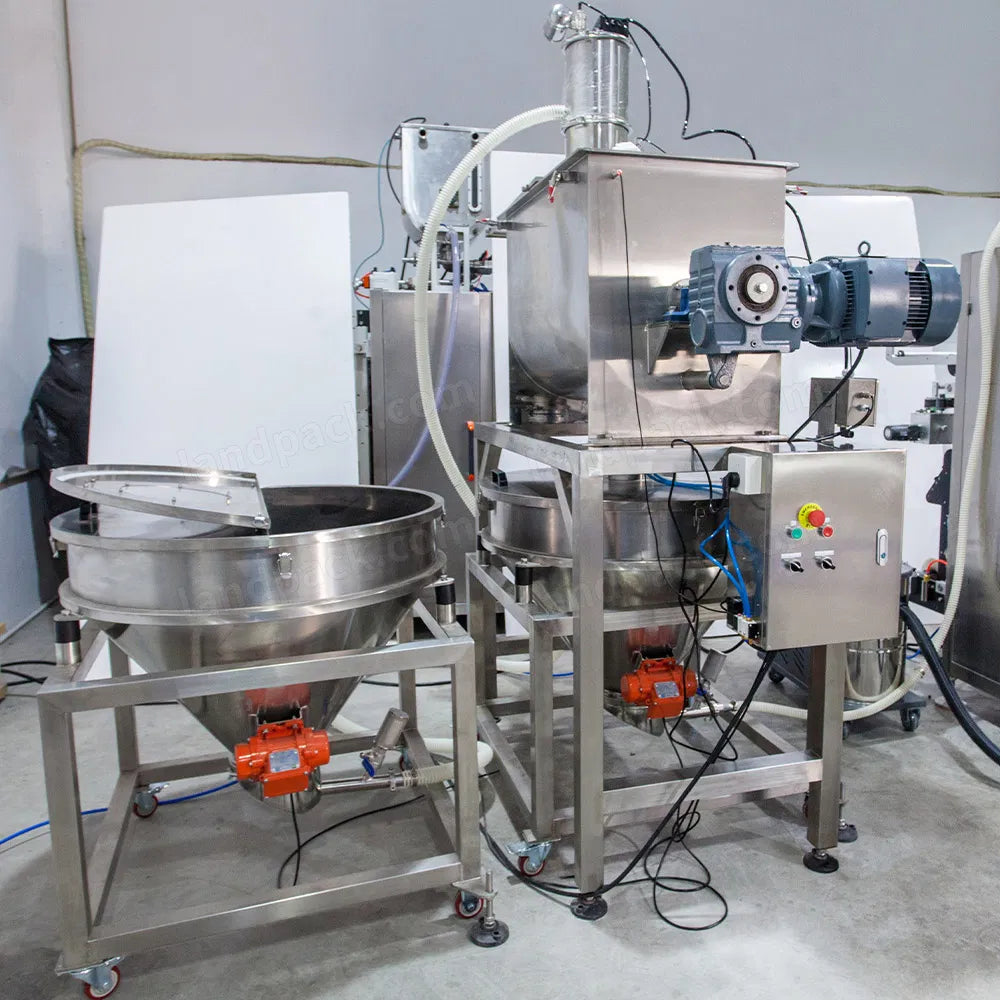

This fully automatic stick pouch powder packaging line ensures a hygienic, touch-free process from start to finish. Equipped with a powder mixing unit, vacuum feeder, screw metering system, and ribbon coder, it delivers high precision and efficiency. Perfect for packaging medicinal powder, tea powder, milk powder, protein powder, coffee, flour, spices, and other fine powders with consistent accuracy and speed.
Basic Info.
|
Model |
LDBS-280D |
LDBS-560D |
|
Lane number |
4-6 Lines |
8-12 Lines |
|
Filling Method |
Auger filling by servo motor |
|
|
Capacity |
Max.35 cycles/ min |
|
|
Sachat Size |
L: 50-180mm; W: 17-30mm |
L: 50-180mm; W: 17-30mm |
|
Film width & Thickness |
Max.280mm, 0.07-0.10mm |
Max.560mm, 0.07-0.10mm |
|
Sealing type |
Back sealing/Stick bag |
Back sealing/Stick bag |
|
Cutting type |
1. Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Irregular |
|
|
Air & Powder |
0.8Mpa, 0.8m³/min; 3.5kw |
0.8Mpa, 0.8m³/min; 5.5kw |
|
Dimension & weight |
1385*918*2005mm; 350kg |
1685*1300*2005mm; 550kg |
Product Description：
4 Automatic 4 Lanes Pharma Medical Powder Stick Bag Pack Packing Machine Line
