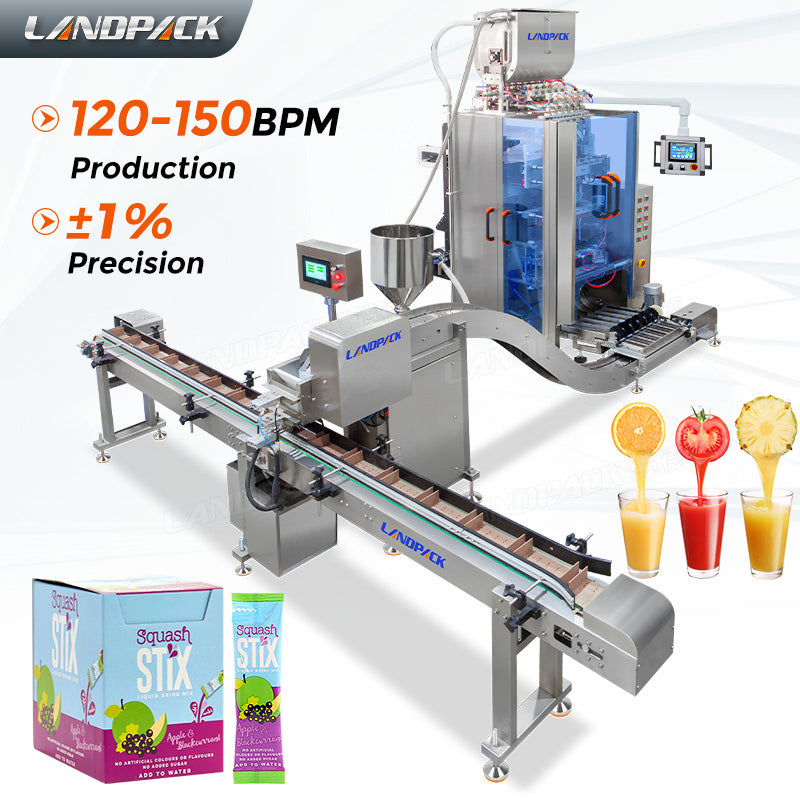

The multi-lane liquid stick packing machine with integrated counting and cartoning line is designed for efficient, high-speed packaging of liquid products. Ideal for items such as condensed milk, shampoo, shower gel, fruit juice, honey, milk, mouthwash, sauces, jams, and jellies, it delivers accurate filling and seamless end-of-line automation across food, personal care, and pharmaceutical industries.
Multi Lane Packing Machine Parameters | ||
Model | LD280BP | LD560BP |
Lane number | 4-6 Lane | 8-12 Lane |
Filling method | 1. Volumetric cup; 2. Weigher | |
Capacity | Max.35 cycle/min | |
Sachet size | L:50-180mm; W:17-30mm | L:50-180mm; W:17-30mm |
Film width & thickness | Max.280mm, 0.07-0.10mm | Max.560mm, 0.07-0.10mm |
Sealing type | Back sealing/Stick bag | |
Cutting type | 1. Straight cutting; 2. Zig zag cutting; 3. Round cutting | |
Air & power | 0.8Mpa, 0.8m³/min, 3.5kw | 0.8Mpa, 0.8m³/min, 5.5kw |
Dimension & weight | 1385×918×2005mm; 350kg | 1685×1300×2005mm; 550kg |
