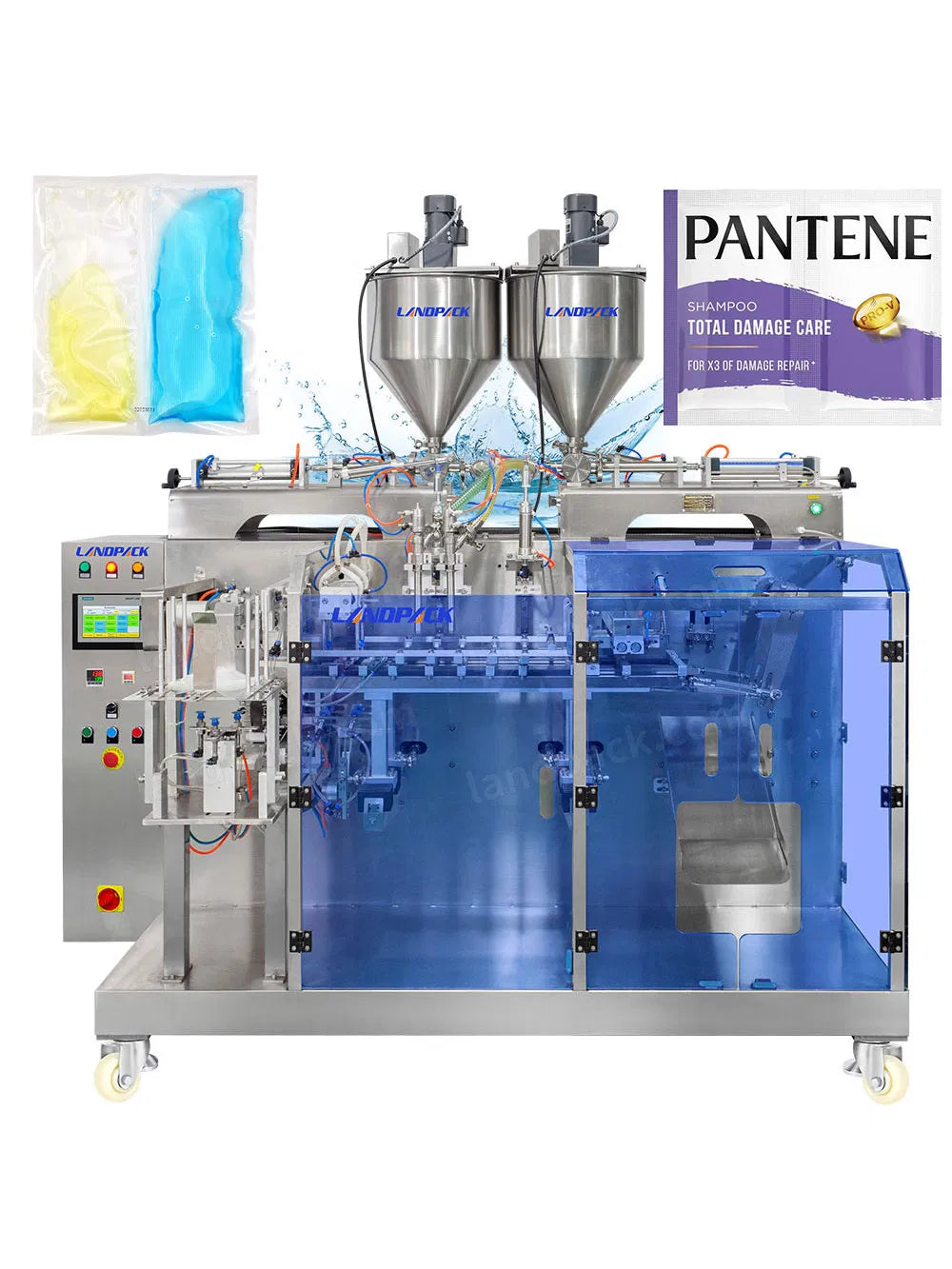

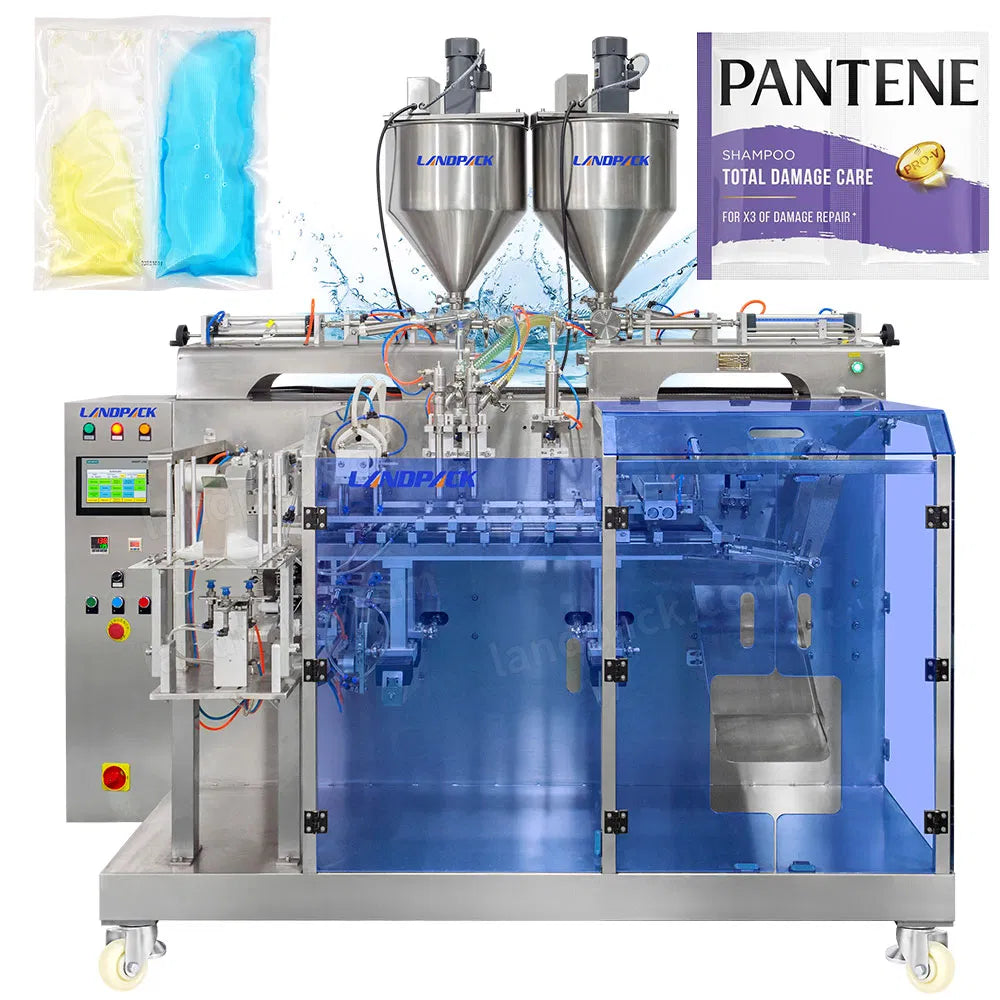

High Speed Liquid Double-Pouch Bag Packing Sealing Machine
Regular price
$6,356.00
Regular price
$6,356.00
Sale price
$6,356.00
Save $0
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
Automatic High Speed Chemical Liquid Double-Pouch Bag Filling Packaging Sealing Machine
Automatic Horizontal Doypack Pouch Packing Machine For Powder can auto finish material feeding, weighing, premade pouch pick-up, open, fill and seal, etc. Premade pouch can be a flat pouch, flat bottom pouch, gusset pouch, stand up pouch without zipper.
Suitable for liquid standing bags, pre-made bags, zipper bags packaging, such as juice, cream, jam, laundry detergent, hand soap, sauces, honey, milk, etc.
The sample of High Speed Liquid Double-Pouch Bag Packing Sealing Machine

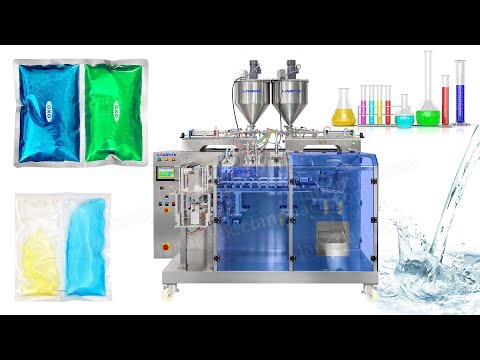

How to pack different liquid material by Pre-made twin pack
Work Flow:
1.Vertical bag giving station.
2.Ribbon coding.
3.Opening bag.

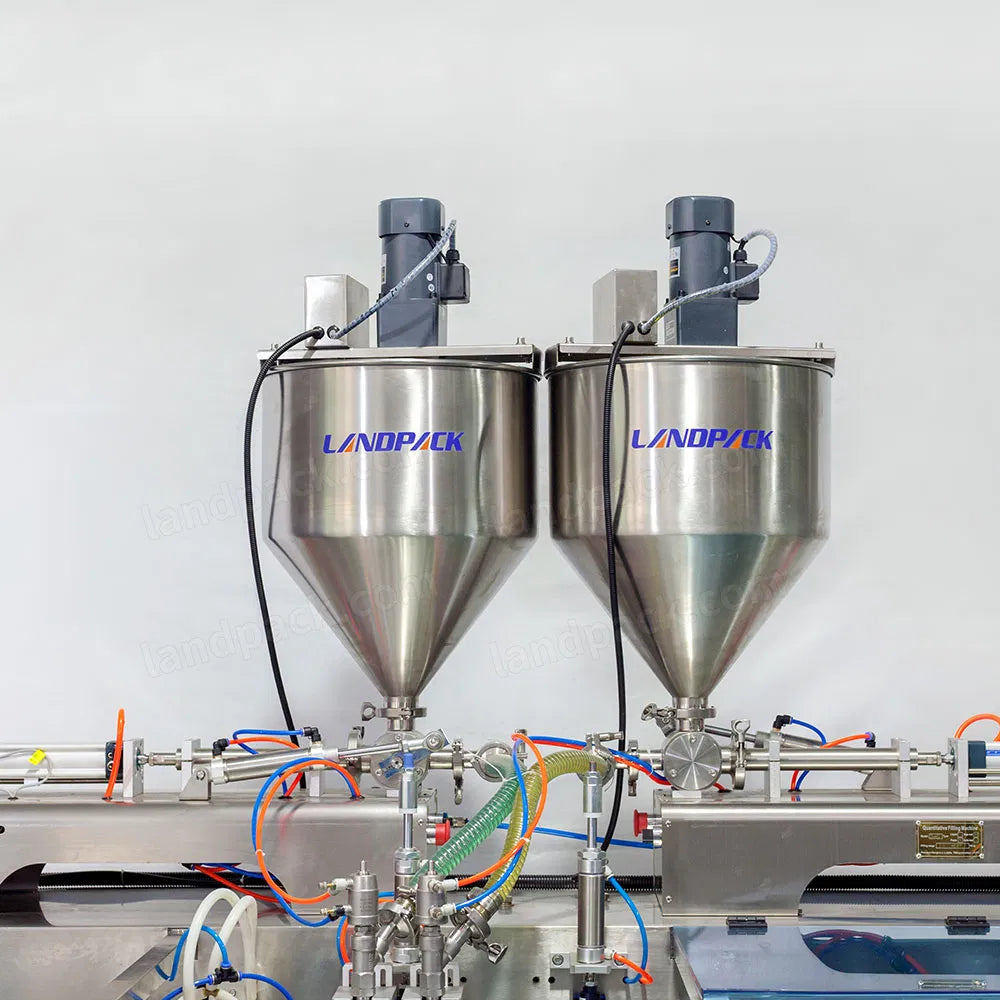

4.Double piston pump with Double filler.
5.Filling different material into twin pack at the same time.
6.Sealing.
| Model | LDSP-210L |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| size | W:110-300 mm |
| Filling range | 10-1000ml |
| Packing speed | 10-45 bag/min(speed is determined by the product filling quantity) |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Weight | 900 KG |
| Main standard parts | 1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system |
| We can customize the suitable one for you according to your requiredment. Just Tell us : Weight or Bag Size required. |
|
