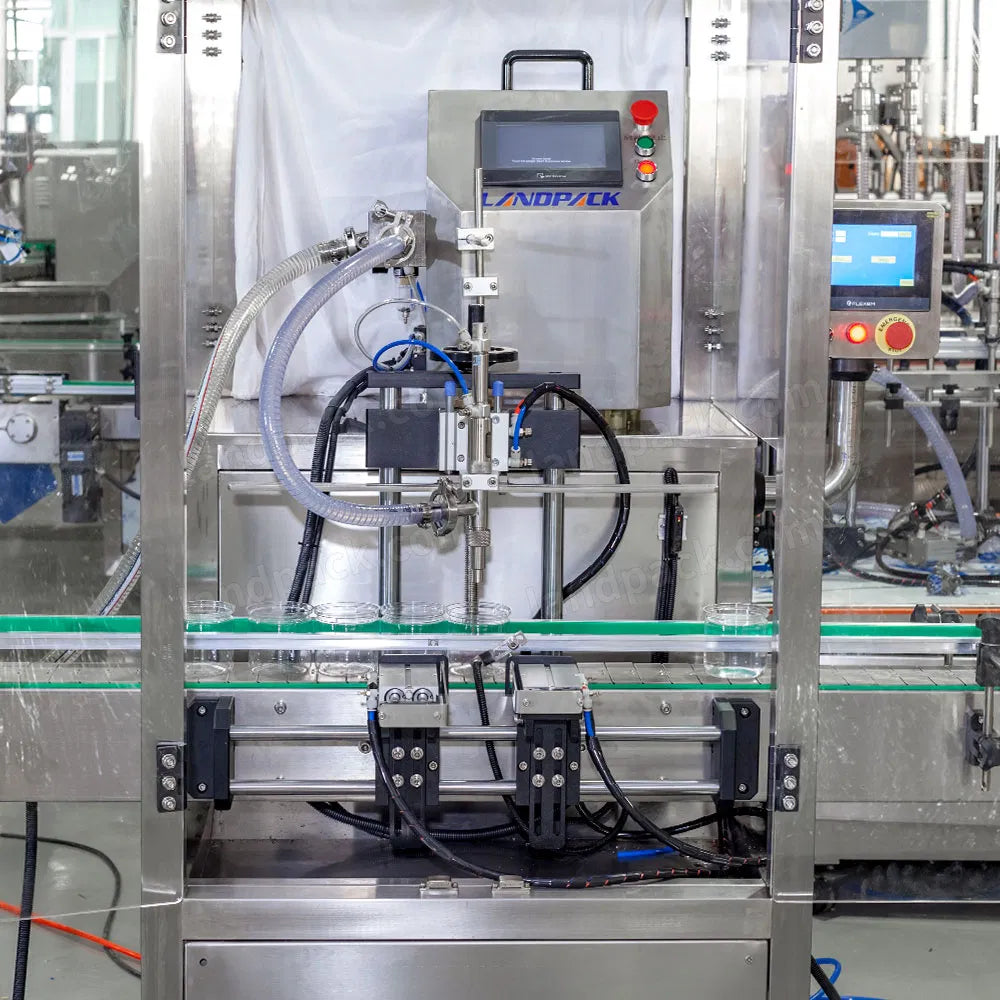

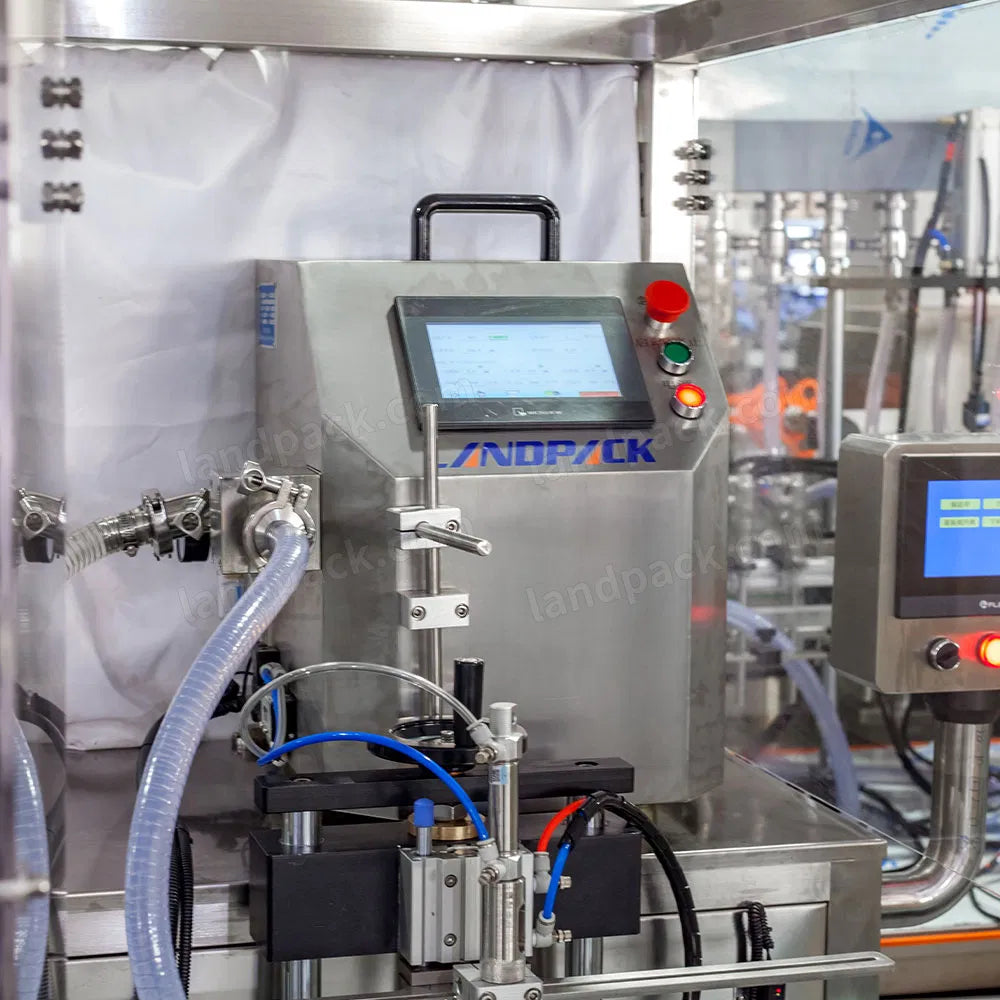

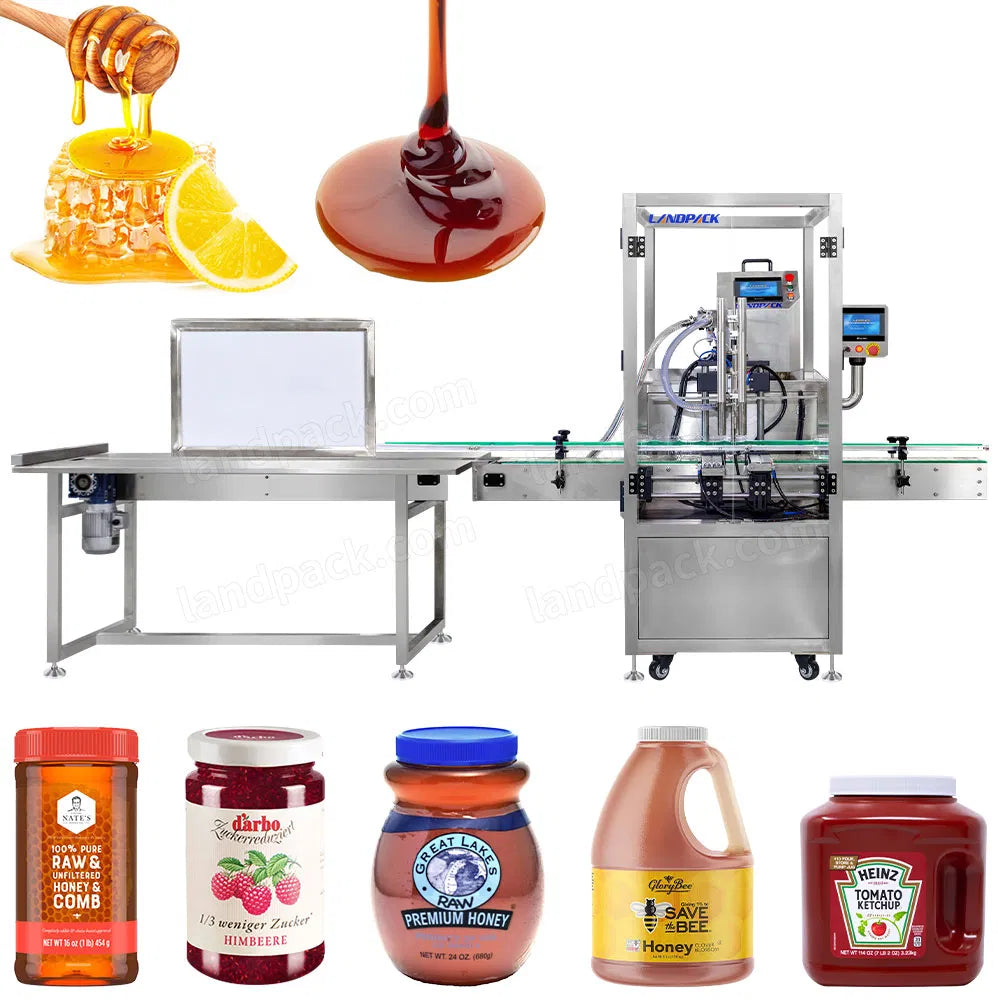

Automatic Single Head Gears Pump Honey Bottel Jam Filling Machine

Automatic Single Head Gears Pump Honey Bottel Jam Filling Machine

Voltage 110V 220V

Price

~~$4,499.00~~

Save $0

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Automatic Single Head Gears Pump Peanut Butter Chemical Liquid Jam Honey Filling Machine

Single Head Gears Pump Honey Bottel Jam Filling MachineAutomatic

The packing line is mainly suitable for packing all kinds of liquid, fluid, and paste material, such as honey, syrup, beverages, palm oil, emulsion, motor oil, body butter, screen wash, water, shampoo, lotion, jams, liquor, pickles sauce, hand washer, antifreeze, and fresh milk.

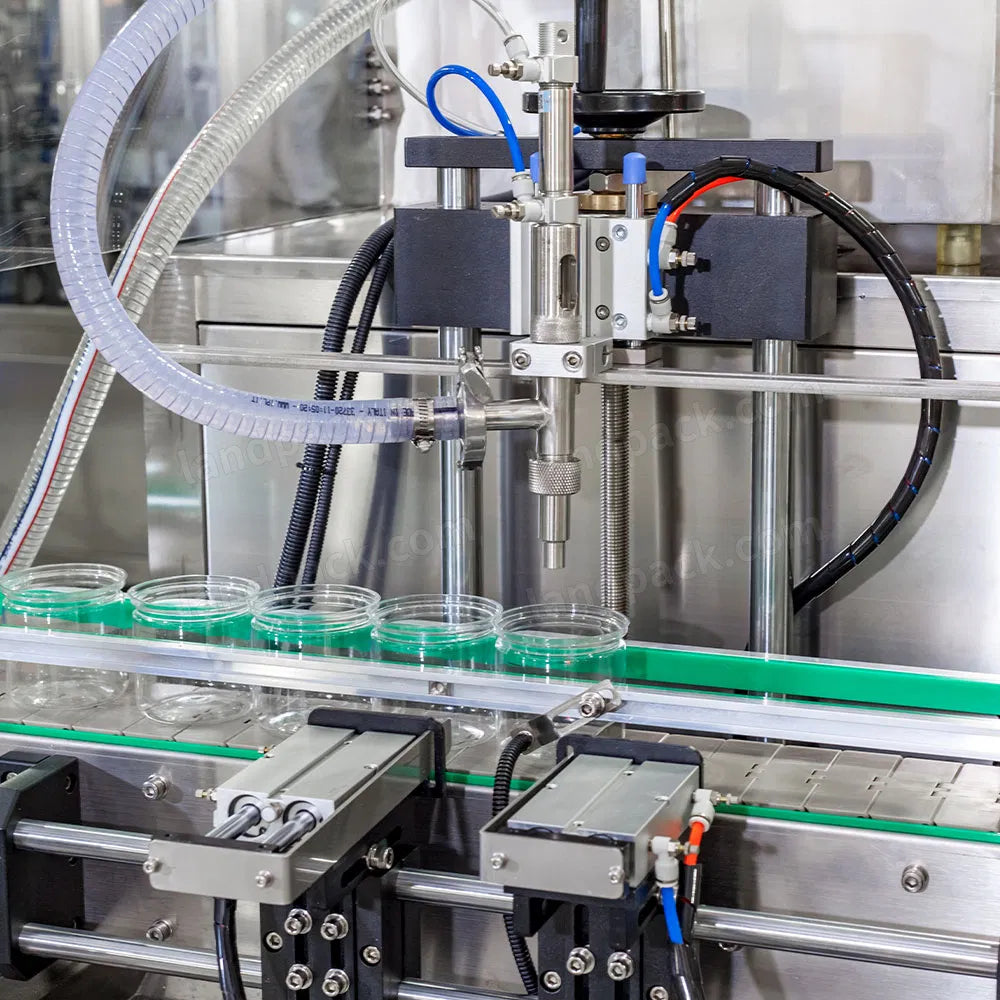

1. Single-head gear pump filling, servo-controlled flow uniformity and high-precision filling, accuracy error 1%.
2. The measuring speed is fast. For example, if 500ml is used, the production speed can reach 7-8 bottles, which is twice that of piston filling.
3. Compatible with common capacity filling of 50ml-5L, no need to change the mold screen to set directly; semi-automatic filling up to 20L
4. Compatible with most flowable liquids, and can be filled with viscosity below honey (5000).

Model	LFZ-01
Filling Range	50-1000ml(Customizable)
Measurement accuracy	±1%
Filling Speed	15-25 bottle/min
Power	2 KW
Working power supply	220V,50Hz
Working pressure	0.6-0.8MPa
Weight	650kg
Size	L4000W1320H2090(mm)
